TCM Product Family
One mobile device for all eddy current testing tasks
Quick to set up. Easy to use. Precise results. The TCM is a modular eddy current testing device that combines multiple inspection and measurement applications in a single rugged system. Instead of using dedicated instruments for individual tasks, users simply select the required app directly on the TCM and adapt the device to their application. Individual app modules are available separately or in combination and can be expanded at any time with additional software modules and free software updates, ensuring the system grows with your inspection requirements.
The DEFECTOSCOP App enables universal eddy current testing with rotating, high-frequency and low-frequency probes for crack detection and residual wall thickness measurement. For precise electrical conductivity measurements of non-ferromagnetic metals, the SIGMATEST App builds on FOERSTER’s decades of expertise in conductivity testing. High-resolution eddy current array inspections of large areas with up to 512 channels can be performed efficiently using the ECA App. The ECMEASURE App completes the range with trainable, application-specific measurements based on reference samples, such as coating thickness, ferrite content or residual wall thickness.
Thanks to its modular software architecture, the TCM supports a wide range of inspection and measurement tasks across numerous industries – from conductivity measurement on aircraft structures and material verification to crack detection on rails, bridges and safety-critical components, as well as high-resolution surface inspection.
All applications run on the same TCM hardware with a consistent user interface and data concept for a short learning curve and intuitive operation. Windows 10 LTSC enables seamless IT integration as well as external displays, docking stations, remote support and familiar Windows workflows for inspection, data review and collaboration.
Free software updates continuously expand the TCM with new features and applications – without additional software costs. Combined with FOERSTER’s proven eddy current expertise and global service network, the TCM is a future-proof solution for flexible mobile testing.
TCM App Modules
Surface Inspection

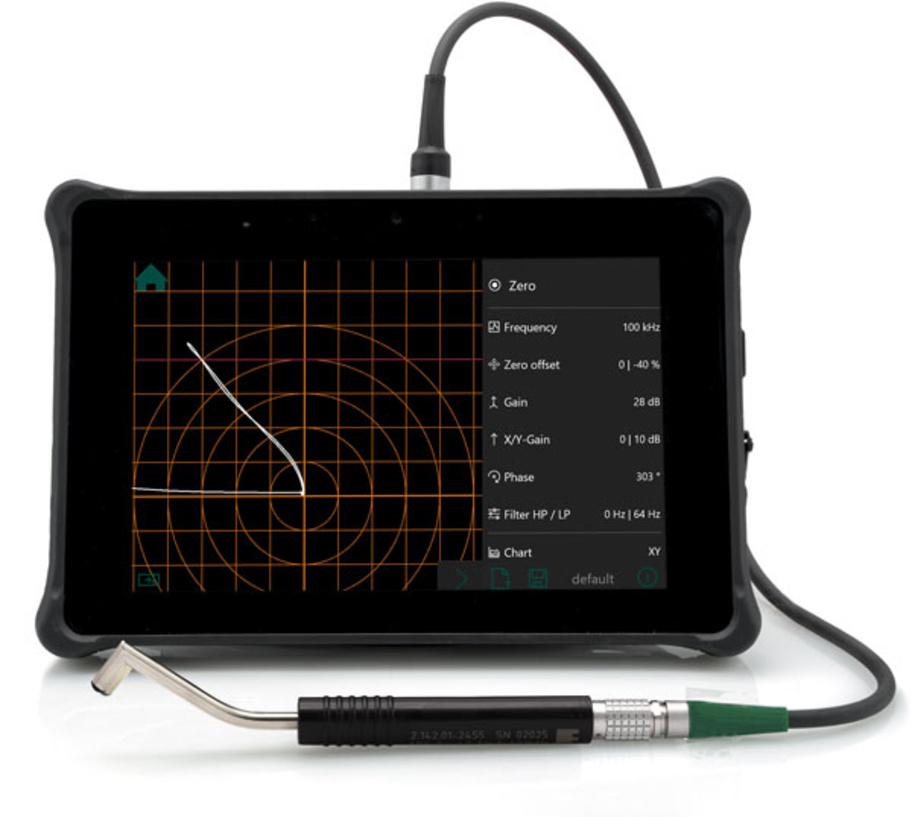

DEFECTOSCOP TCM
Universal eddy current testing with rotating, HF and LF probes
Conductivity measurement

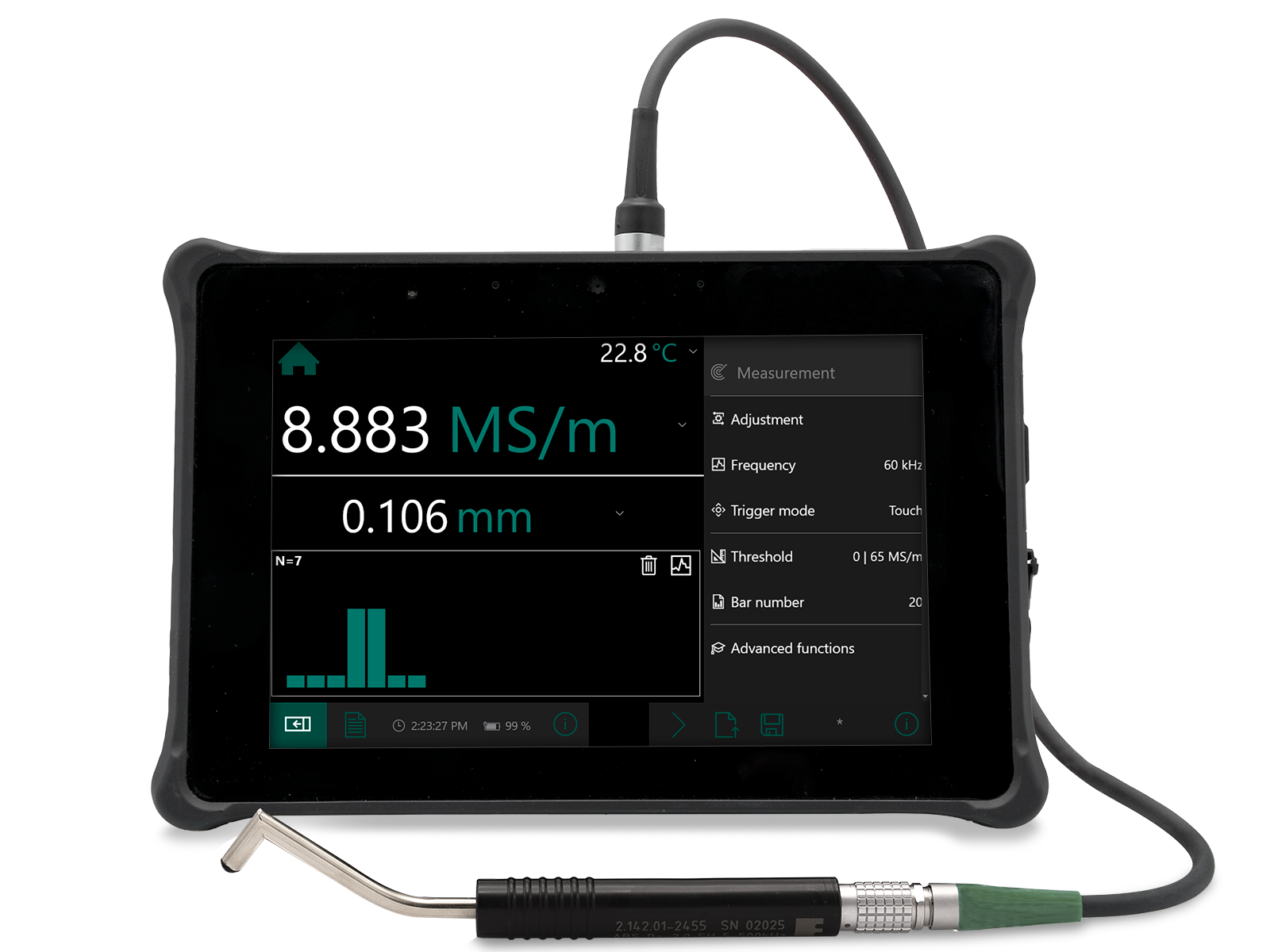

SIGMATEST TCM
Electrical conductivity measurement of non-ferromagnetic metals
Surface Inspection

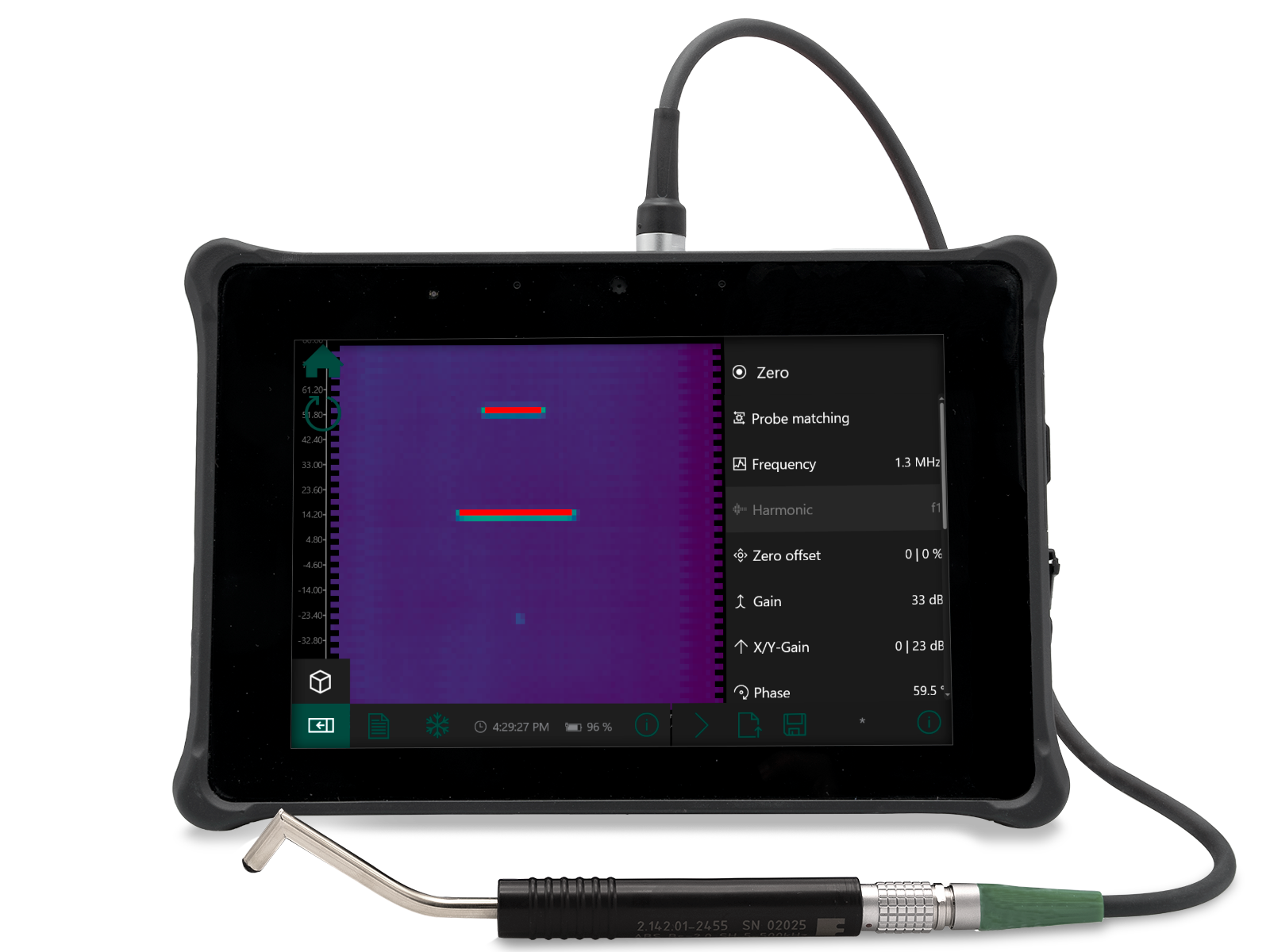

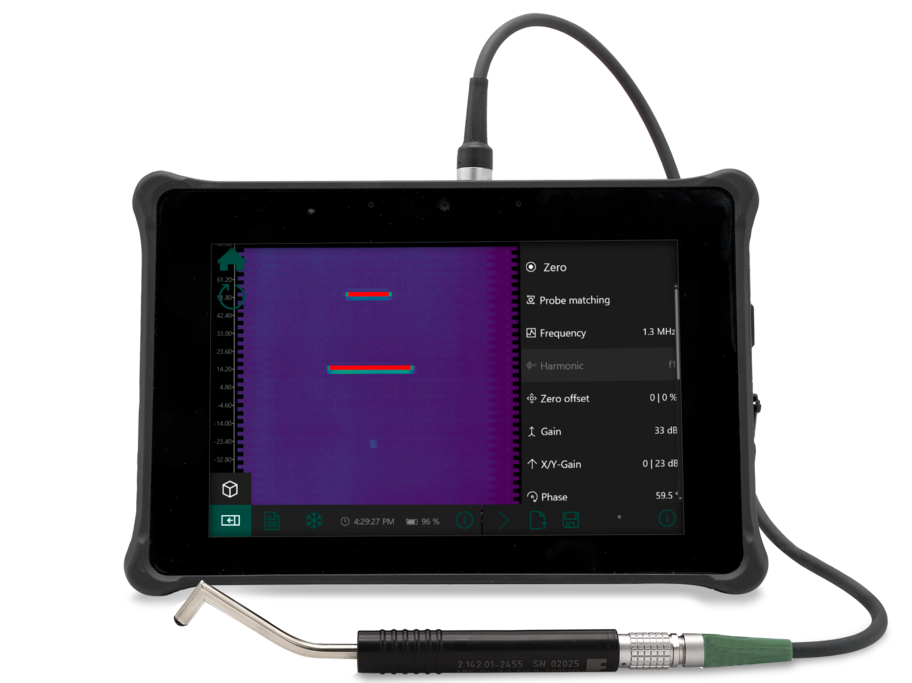

ECA TCM
Eddy current testing with sensor arrays for large-area inspection
Multi-Method Inspection

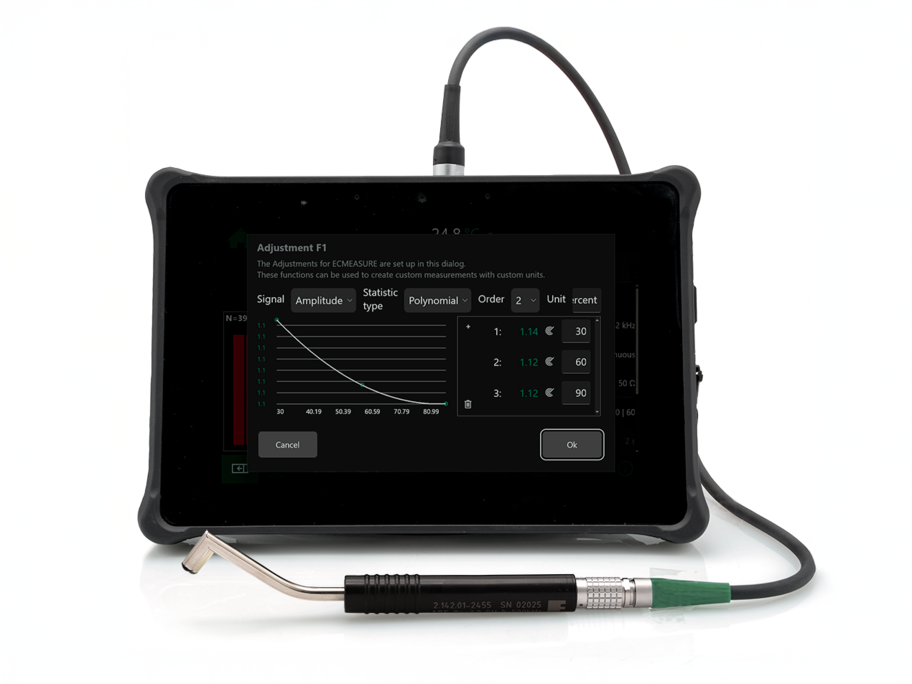

ECMEASURE TCM
Trainable eddy current measurements for application-specific inspection tasks
Product highlights
Technical information
| Display: |
|
| Protection: | Designed for IP 66, drop-resistant from 1.5 m |
| Weight: | 1.3 kg |
| Dimension: | 227 mm × 150 mm × 51 mm (L × W × H) |
| Operating temperature: | -20 °C to +50 °C |
| Battery: | Up to 6 hours operating time |
| Camera: |
|
| Storage: | 128 GB SSD |
| Operating system: | Windows 10 LTSC |
| Connection ports: |
|
| Audio: | Audio in/out (combo jack) |
| Documentation: | Export raw data, screenshots and inspection reports (Word & PDF) |
| Embedded Help: | Context-sensitive help for every setup and dialog to support fast commissioning and safe operation |
| Languages: | English, German, Spanish, Japanese, Chinese, Czech, Italian, French |
PROBES FOR THE TCM

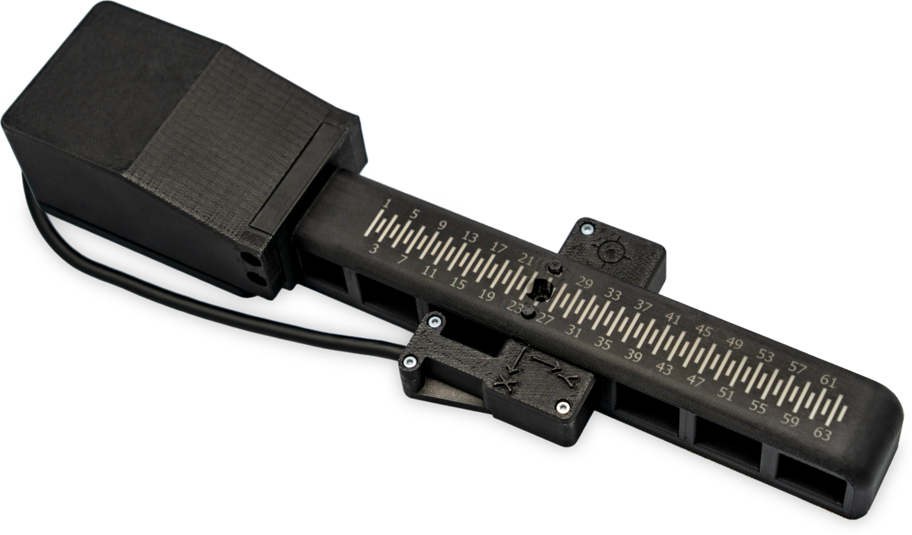

Standard TCM Array Probes
Versatile Eddy Current Array Probes for Efficient Surface Inspection

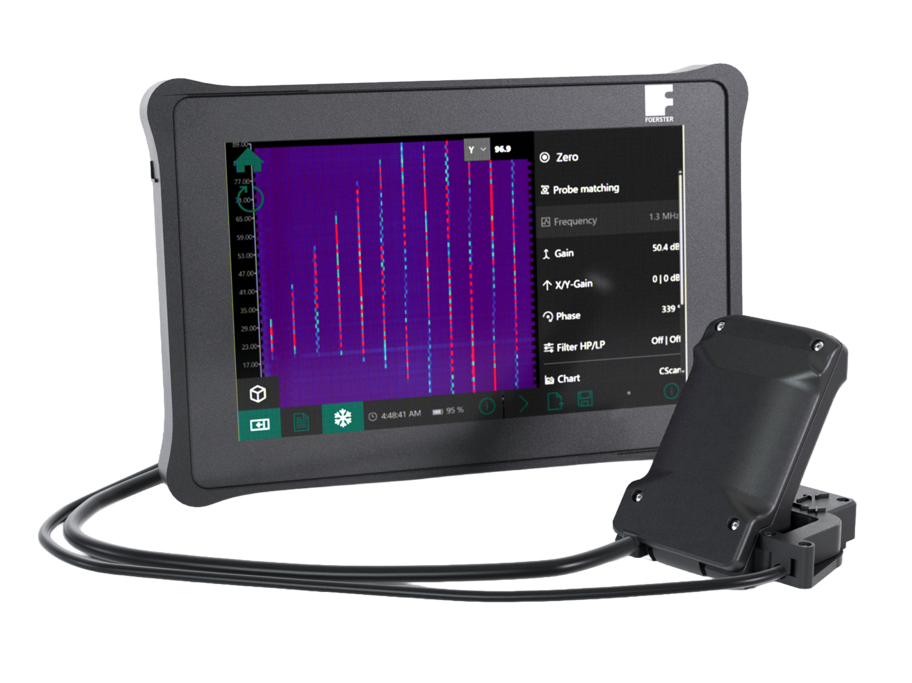

High-Resolution Array Probe
High-resolution Eddy Current Array probe for the precise detection and localization of the smallest surface defects

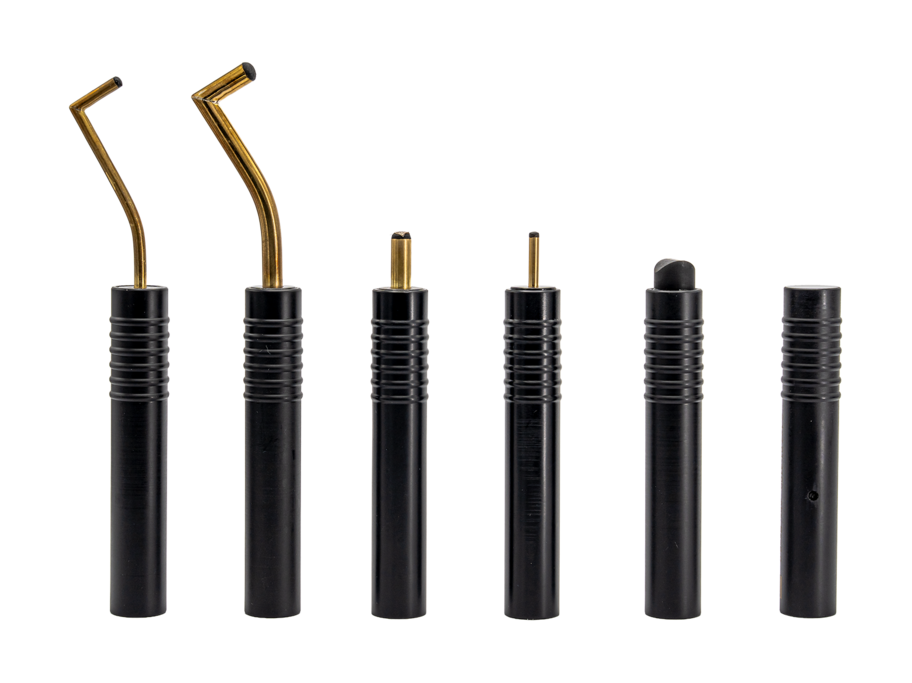

TCM Standard Probes
Flexible probe solutions for precise eddy current inspection with the TCM

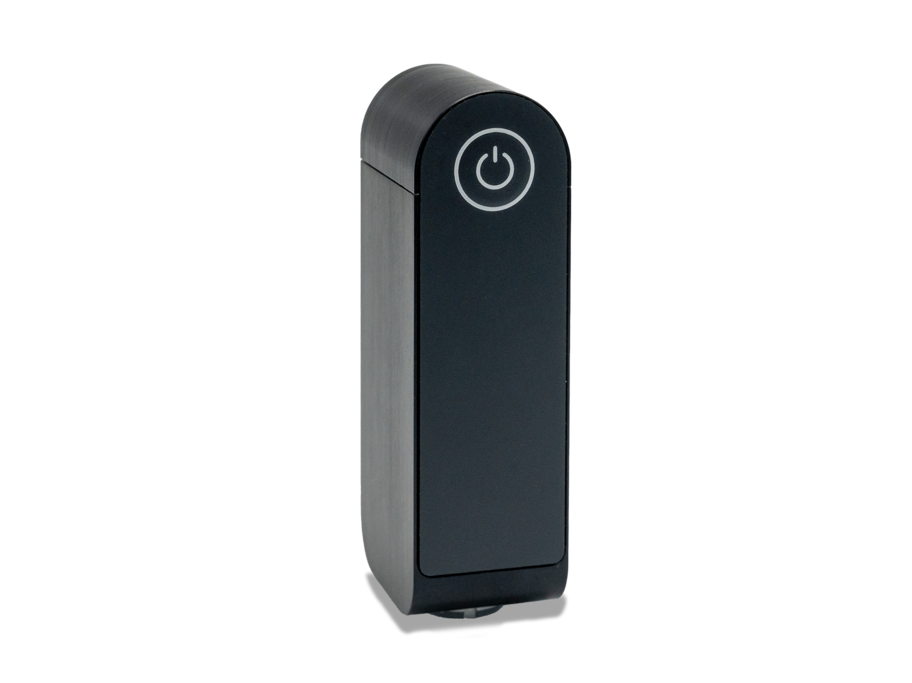

HRO Hand Rotating Unit
High-resolution borehole inspection with rotating eddy current probes
Application notes

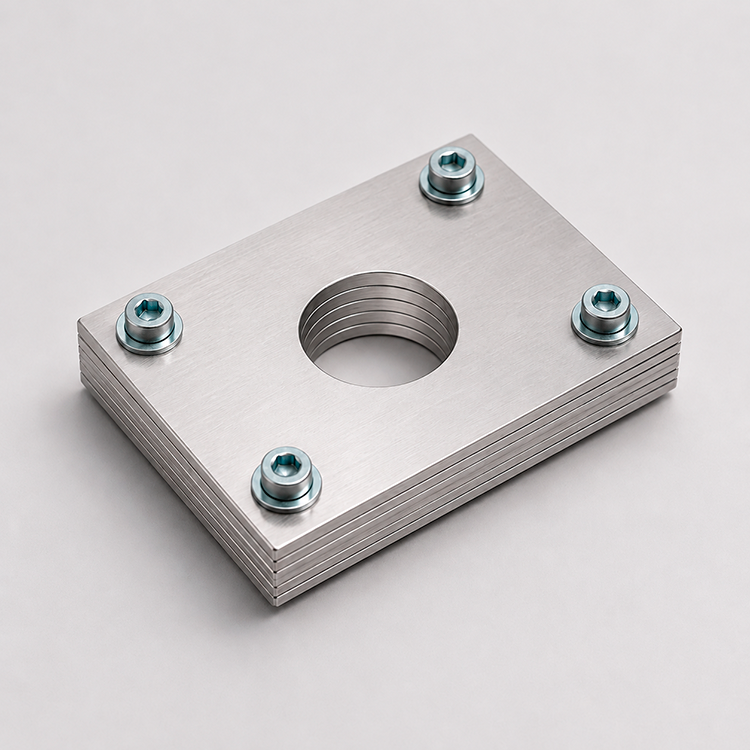

Inspection of Multi-Layer Aluminum Structures in Aerospace
Defects in multi-layer aluminum structures can be difficult to detect from the surface. Eddy current testing enables reliable inspection of safety-critical areas, including bolt and bore holes, without damaging the component.
Inline Crack Inspection of Cold-Rolled Steel Strip
Surface cracks in cold-rolled steel strips can lead to costly scrap and quality issues. Inline eddy current testing detects defects in real time during production.
Freight Wagon Wheel Inspection During Reprofiling
Surface cracks on freight wagon wheels can compromise operational safety. Eddy current testing enables reliable inline inspection during reprofiling without additional handling.
