Tensile Strength Testing
Tensile testing is a core method of mechanical materials testing and an essential component of industrial quality assurance. It describes the maximum resistance of a material to uniaxial tensile loading up to fracture. Key mechanical properties such as ultimate tensile strength (Rm), yield strength (Re), proof stress (Rp0.2), elongation at break, and reduction of area are determined. These parameters characterize the elastic–plastic deformation behavior of materials and are critical for the design and validation of safety‑relevant components and structures.
In industrial manufacturing as well as in research and development, mechanical material properties must be determined in a standards‑compliant, reproducible, and efficient manner. Tensile testing is widely applied in the automotive industry, machinery and plant engineering, aerospace, medical technology, and materials development. Wherever metals, plastics, or composite materials are subjected to mechanical loads, tensile testing provides reliable data for material selection, process monitoring, qualification, and component approval.

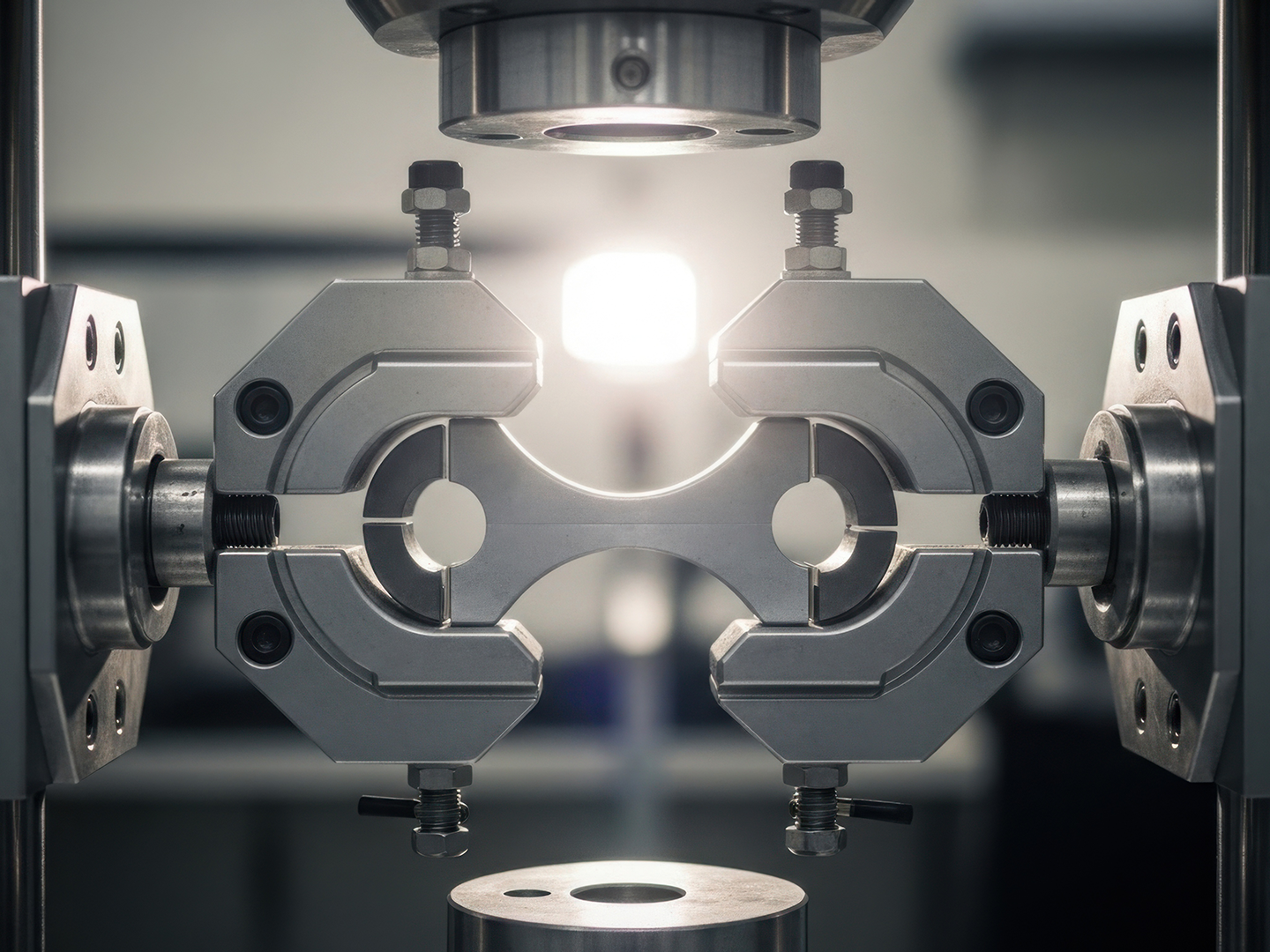

In classical tensile testing, a standardized specimen with a defined geometry is subjected to axial loading at a controlled strain or crosshead speed until failure occurs. The resulting stress–strain curve enables a detailed analysis of material behavior, ranging from elastic deformation through plastic flow to final fracture. Modern tensile testing machines operate fully automatically in accordance with international testing standards such as DIN EN ISO 6892‑1 or ASTM E8, delivering precise, traceable, and standards‑compliant test results for both laboratory and production applications.
Complementing classical tensile strength testing, indentation testing based on indentation plastometry provides an innovative and efficient alternative for determining mechanical material properties. A defined indenter is pressed into the material surface, and the resulting imprint is subsequently measured using optical 3D metrology. Through numerical evaluation, flow curves, yield strength, and ultimate tensile strength can be derived – quasi non‑destructively and without time‑consuming specimen preparation. This method is particularly well suited for location‑specific material characterization directly on the component, for example in weld seams, heat‑affected zones, or locally treated areas. With measurement times of less than 60 seconds and a high degree of automation, indentation testing is ideal for high‑throughput screening, inline inspection, and the development of new materials and alloys.
Complementing classical tensile strength testing, indentation testing based on indentation plastometry provides an innovative and efficient alternative for determining mechanical material properties. A defined indenter is pressed into the material surface, and the resulting imprint is subsequently measured using optical 3D metrology. Through numerical evaluation, flow curves, yield strength, and ultimate tensile strength can be derived – quasi non‑destructively and without time‑consuming specimen preparation. This method is particularly well suited for location‑specific material characterization directly on the component, for example in weld seams, heat‑affected zones, or locally treated areas. With measurement times of less than 60 seconds and a high degree of automation, indentation testing is ideal for high‑throughput screening, inline inspection, and the development of new materials and alloys.
