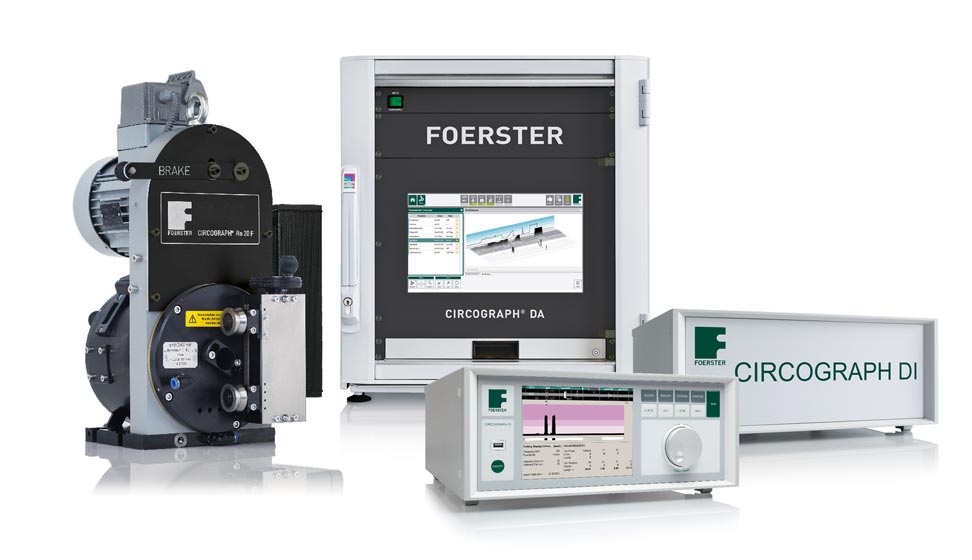

CIRCOGRAPH Product Family

Contactless eddy current inspection for reliable detection of longitudinal surface defects on bright products

Maximum detection sensitivity for outstanding surface quality. The CIRCOGRAPH product family comprises high-performance eddy current inspection systems with rotating sensors for the non-destructive detection of longitudinal surface defects on bright products. The contactless inspection technology enables reliable and reproducible testing of tubes, bars, wire and profiles directly during production.

Rotating sensor systems scan the entire material surface in a spiral pattern without touching the test material. This allows even the smallest surface-breaking defects to be detected reliably and displayed over their full length. Depending on the application, different system variants, rotating heads and rotating discs are available for the inspection of round, flat and profiled materials.

Thanks to their modular design, CIRCOGRAPH inspection systems can be adapted to a wide variety of inspection tasks and production environments. They integrate seamlessly into new and existing production lines while providing comprehensive options for visualization, documentation and evaluation of inspection results. Together with you, FOERSTER develops a testing solution tailored precisely to your application.

Downloads

Product highlights

Your advantages at a glance

Reliable eddy current inspection: Contactless detection of longitudinal surface defects on bright products.
Maximum detection sensitivity: Reliably detects even the smallest surface-breaking defects from approximately 30 μm.
Continuous full-surface inspection: Rotating sensor systems scan the entire material surface without contact.
Broad application range: Suitable for tubes, bars, wire, profiles and flat products using application-specific rotating heads and rotating discs.
Flexible system solutions: Modular system concept adapts to a wide variety of inspection tasks and production environments.
Easy production integration: Compact system design enables seamless integration into new and existing production lines.
Comprehensive quality documentation: Modern software solutions support visualization, evaluation and complete traceability of inspection results.
Proven FOERSTER technology: Decades of expertise in contactless eddy current inspection for long product manufacturing.

Norms

DIN EN ISO 15549
Describes the general bases of eddy current testing.

Applications

Eddy Current Testing

Crack Inspection

Downloads

Product comparsion

CIRCOGRAPH	DI	CI	DA
Channels (max.)	2	2	256
DEFECTOMAT channel	-	-	Option
Graphic user interface	-	x	x
Database	-	-	x
Line function	x	x	x
Test report	Option	x	x
