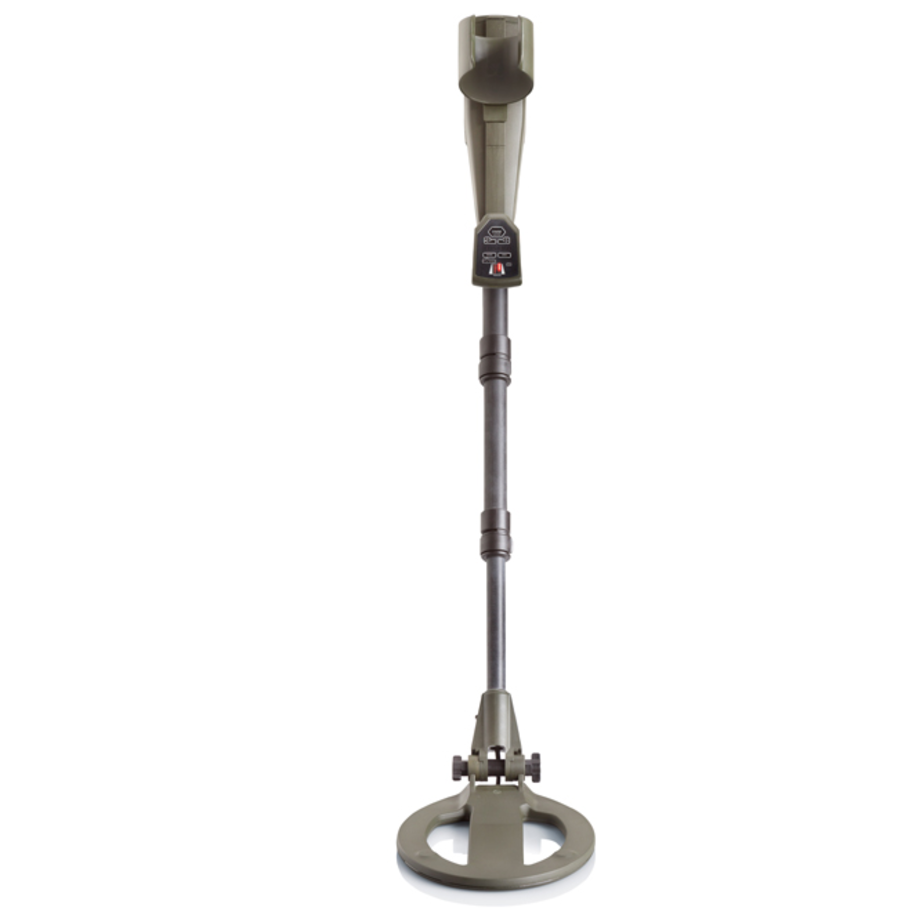

MINEX 4.611

Minimum metal, wire and conductivity detector

Precise detection of near-surface objects. The MINEX 4.611 is designed to detect very small near-surface metal objects, so-called minimum metal mines or plastic mines. Parallel, at the same time, it detects conductive targets such as components of IEDs as well as any kind of wires. It offers maximum sensitivity and best possible pinpointing of targets while still providing robustness and reliability in any conditions.

A ground learning function for operation on uncooperative soil and a military mode that turns off the LED indicators for safe night operations. These are only two of the vital features available. The MINEX 4.611 comes in a rugged hardcase and can be equipped with accessories according to the customer’s needs. Commonly, individual packages are defined and delivered.

Product highlights

Your advantages at a glance

  • Digital dual frequency continuous wave technology: Ensures maximum sensitivity for detecting metals, wires and conductive materials.
  • Double-D search coil: Two different signals for precise pinpointing and close detection near large metal structures such as fences, railway tracks and cars.
  • Different senses for precise working: Audible and visual signals in combination with a vibration alarm on the handle help and simplify detection.
  • Easy to operate: Nine sensitivity ranges, for precise adjustments. All control and display elements are integrated into the handle. Visual display with 14 LEDs that can be switched off in military mode.
  • No disturbance and influence: No disturbance by high power lines. No influence on the detection depth by wet soil.
  • Adapts to all circumstances: Fast individual ground learning and a noice-cancelling function for non-cooperative soil conditions.
  • Safe to use: Integrated function test of all control and display elements inclusive malfunction alarm and low battery signal. An additional supervisor mode is available.
  • Optional equipment: Headphone, carrying strap, rechargeable batteries and charger, soft case

Technical information

Dimensions - Detector: Length: 657 mm (folded up)
Max. overall length: 1,677 mm
Width: 97 mm
Height: 253 mm
Dimensions - Search head: Oval, 210 × 285 mm
Dimensions - Soft case: 720 × 340 × 150 mm (H × W × D)
Weight: 2.2 kg without batteries
2.6 kg complete with batteries
2.5 kg soft case
Waterproof - Electronics and search head: IP 68, 2 m, 30 minutes
Storage temperature (without batteries): - 57 °C to +71 °C
- 135 °F to +160 °F
Permissible ambient temperature range: - 37 °C to +71 °C
- 99 °F to +160 °F
Power supply: 3 x 1.5 V alkaline battery
3 x 1.2 V NiMH rechargeable batteries
Battery size: IEC LR/HR 20 (according to ANSI STD, size “D”)
Battery lifetime alkaline battery: > 40 h at an ambient temp. of +20 °C (+68 °F) (1.5 V, VARTA LONGLIFE Power)
Battery lifetime NiMH rechargeable battery: > 30 h at an ambient temp. of +20 °C (+68 °F) (1.2 V, ANSMANN-10000 mAh)
Mean time between failures (MTBF): MIL-HDBK-217F N2 and ANSI/VITA 51.1-2013 (R2018)
NPRD-2011 for non-electronic components
EMV/CE certifications:
  • ETSI EN 303 454 V1.1.1:2018-01
  • DIN EN 50364:2019-05
  • ETSI EN 301 489-1 V2.2.3
  • DIN EN 55032:2016-02
  • DIN EN 61000-4-2:2009-12
  • DIN EN 61000-4-3:2011-04
  • DIN EN 62368-1:2021-05
MIL-Standard certification:
  • MIL-STD 810H Method 501.7, Procedure I - High Temperatures, Storage
  • MIL-STD 810H Method 501.7, Procedure II - High Temperatures, Operation
  • MIL-STD 810H Method 502.7, Procedure I - Low Temperatures, Storage
  • MIL-STD 810H Method 502.7, Procedure II - Low Temperatures, Operation
  • MIL-STD 810H Method 503.7, Procedure I-C - Thermal Shock
  • MIL-STD-810H Method 506.6, Procedure I - Rain
  • MIL-STD-810H Method 512.6, Procedure I - Submersion
  • MIL-STD-810H Method 514.8, Oscillation Broadband Noise
  • MIL-STD-810H Method 516.8, Drop Test
  • MIL-STD-810G Method 505.5, Procedure II - Solar Radiation (continuous test solar radiation)
IMAS certification: CWA 14747-1:2003-06-01
Additional certifications:
  • IEC 60068-2-11:2020
  • IEC 60068-2-78:2012
  • IEC 60529 - Protection type test IP68
  • DIN EN 60068-2-27:2010-02
  • DIN EN 60068-2-1:2008-01/ -2-2:2008-05
