TCM Product Family

One platform for all eddy current testing tasks

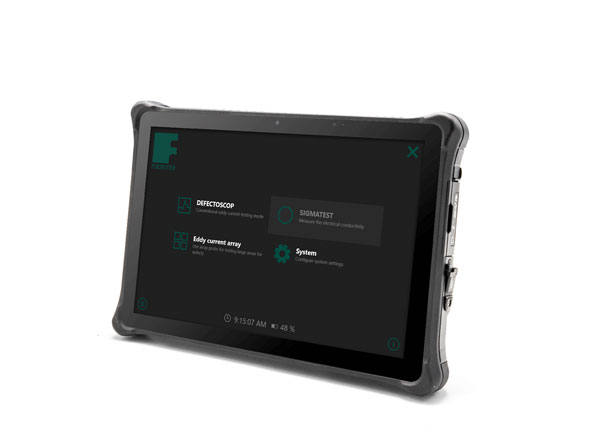

Designed for multipurpose use. The TCM is a modular eddy current testing platform that combines multiple inspection and measurement applications on a single device. Instead of using dedicated instruments for individual tasks, users select the required software directly on the TCM and adapt the system flexibly to their application.

The DEFECTOSCOP App enables universal eddy current testing with rotating, high-frequency and low-frequency probes for crack detection and residual wall thickness measurement. The SIGMATEST App adds precise electrical conductivity measurement of non-ferromagnetic metals, while the ECA App provides high-resolution eddy current testing using sensor arrays with up to 512 channels for efficient large-area inspection. The ECMEASURE App extends the platform with trainable, application-specific measurements based on reference samples, such as coating thickness, ferrite content or residual wall thickness.

All software solutions run on the same TCM hardware and share a consistent user interface and data concept. This ensures fast setup, intuitive operation and reliable, repeatable results across a wide range of eddy current testing tasks.

Backed by the proven eddy current expertise and global service of FOERSTER, the TCM is a future-proof solution for flexible testing.

Download the newest software version of the TCM

Technical information
Downloads

Product highlights

Your advantages at a glance

Universal eddy current platform: All relevant eddy current applications in one device – from HF and LF testing to conductivity measurement, Eddy Current Array inspection and trainable measurements.
Inline-level signal quality: Proven FOERSTER eddy current technology ensures reliable and reproducible inspection results.
Intuitive operation: App-based interface with automatic probe recognition for fast setup and safe operation.
Maximum flexibility: Supports FOERSTER and third-party probes. Modular software enables future extensions.
Comprehensive documentation: Raw data, screenshots, camera integration and reports ensure full traceability.
Industrial IT and global service: Windows 10 LTSC for stable network integration – backed by FOERSTER’s global service network.

Norms

DIN EN ISO 15548

Standard defining performance characteristics and verification of eddy current testing instruments to ensure reliable and reproducible measurements.

Technical information

Display:	8.0“ touchscreen, 1280 × 800, 800 nits, readable in sunlight Switch between usage with finger or gloves
Protection:	Designed for IP 66, 1.5 m drop height
Weight:	1.3 kg
Dimension:	227 mm × 150 mm × 51 mm (L × W × H))
Temperature:	-20 °C to +50 °C
Power:	Battery time: 6h
Camera:	Back camera with 8.0 MP, front camera with 2.0 MP
Storage:	128 GB SSD
Connection ports:	19-pin LEMO, Thunderbolt 4, USB 3.2 Gen2 (type C), microSD reader
Audio:	Audio in/out (combo jack)
Documentation:	Save/export raw data, screenshots, reports
Embedded Help:	Find information on every setup and dialog for fast and save usage
Languages:	English, German, Spanish, Japanese, Chinese, Czech, Italian, French
