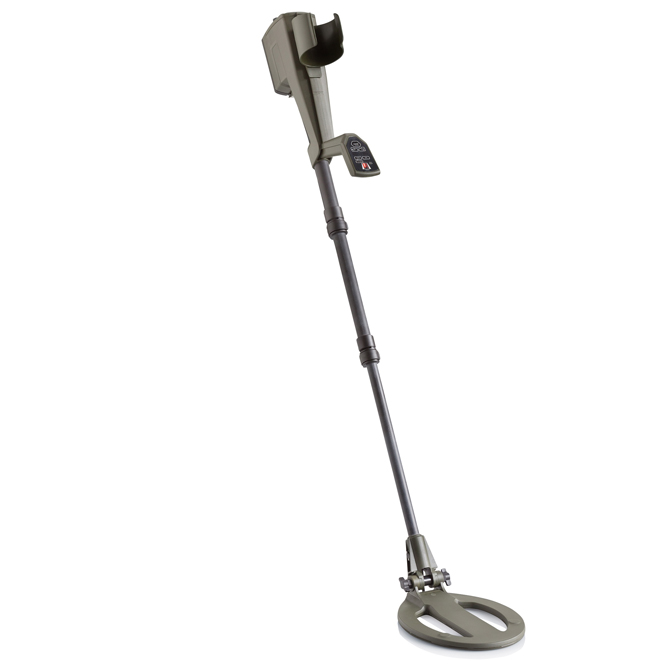

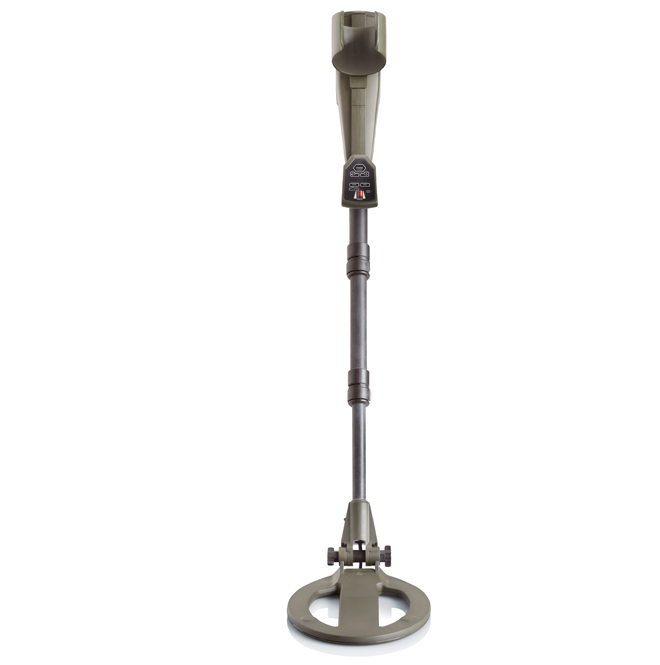

MINEX 4.610

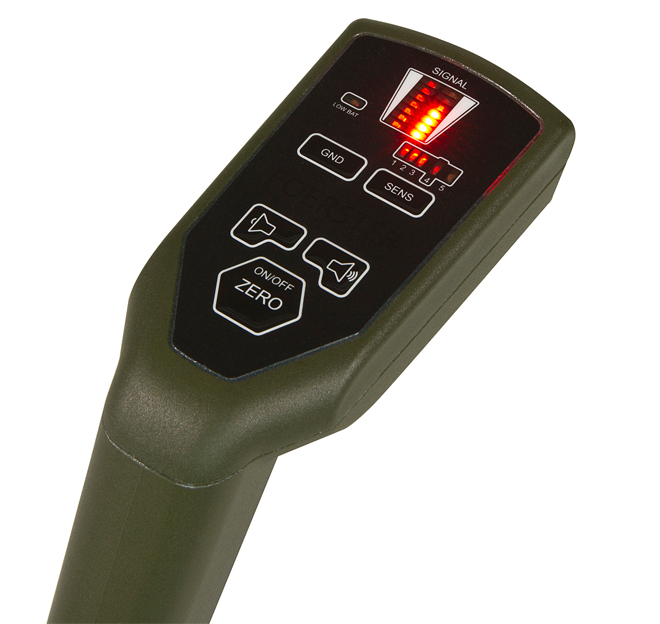

Precise detection of near-surface objects. The MINEX 4.610 is designed to detect very small near-surface metal objects, so-called minimum metal mines or plastic mines. It offers maximum sensitivity and best possible pinpointing of targets while still providing robustness and reliability in any conditions. A ground learning function for operation on uncooperative soil and a military mode that turns off the LED indicators for safe night operations are only two of the vital features available.
The MINEX 4.610 comes in a rugged soft case and can be equipped with accessories according to the customer’s needs. Commonly, individual packages are defined and delivered.
Product highlights
Technical information
| Dimensions - Detector: | Length: 657 mm (folded up) Max. overall length: 1,677 mm Width: 97 mm Height: 253 mm |
| Dimensions - Search head: | Oval, 210 × 285 mm |
| Dimensions - Soft case: | 720 × 340 × 150 mm (H × W × D) |
| Weight: | 2.2 kg without batteries 2.6 kg complete with batteries 2.5 kg soft case |
| Waterproof - Electronics and search head: | IP 68, 2 m, 30 minutes |
| Storage temperature (without batteries): | - 57 °C to +71 °C - 135 °F to +160 °F |
| Permissible ambient temperature range: | - 37 °C to +71 °C - 99 °F to +160 °F |
| Power supply: | 3 × 1.5 V alkaline battery 3 × 1.2 V NiMH rechargeable batteries |
| Battery size: | IEC LR/HR 20 (according to ANSI STD, size “D”) |
| Battery lifetime alkaline battery: | > 40 h at an ambient temp. of +20 °C (+68 °F) (1.5 V, VARTA LONGLIFE Power) |
| Battery lifetime NiMH rechargeable battery : | > 30 h at an ambient temp. of +20 °C (+68 °F) (1.2 V, ANSMANN-10000 mAh) |
| Mean time between failures (MTBF): | MIL-HDBK-217F N2 and ANSI/VITA 51.1-2013 (R2018) NPRD-2011 for non-electronic components |
| NATO Stock number: |
MINEX 4.610, 2297493, Hardcase, 6665-12-429-4759 |
