ECHOVIEW F

Central software platform for BARPROOF ultrasonic inspection systems

Control, monitor and document every inspection from a single interface. ECHOVIEW F is the central operating, inspection and evaluation software for the BARPROOF phased-array ultrasonic testing system. It combines inspection setup, process control, result visualization and documentation within a single intuitive software environment, supporting reliable and efficient inline inspection of bars.

Inspection recipes, material parameters and order data are managed centrally, while seamless communication with the phased-array electronics and PLC ensures synchronized operation throughout the entire inspection process. During testing, operators receive a live overview of inspection results, system status, warnings and diagnostic information.

From probe calibration and parameter optimization to automatic inspection, result visualization and report generation, ECHOVIEW F supports every stage of the inspection workflow. Comprehensive data storage and automated documentation ensure complete traceability and simplify quality assurance.

Product highlights

Your advantages at a glance

  • Central inspection management: Control inspection setup, process monitoring and result evaluation from one intuitive software platform.
  • Flexible recipe management: Store and manage inspection parameters, material data and application-specific test recipes for fast changeovers.
  • Efficient calibration: Automatic balancing of all virtual phased-array probes using reference reflectors ensures consistent inspection performance.
  • Process reliability: Automatic validation of machine parameters and inspection recipes prevents incorrect inspection setup.
  • Live inspection visualization: Monitor inspection results, A-scans and line charts in real time during production.
  • Comprehensive result analysis: Review defect type, position, length and amplitude with clear graphical visualization and detailed defect tables.
  • Automated reporting: Generate inspection reports automatically for every tested bar and store reports and raw data in the integrated database.
  • User management and security: Password-protected user levels and configurable permissions ensure secure and controlled operation.
  • Ready for production integration: Communicates seamlessly with the phased-array electronics, PLC and Level 2 systems for efficient production workflows.

Applications

Ultrasonic Testing

Ultrasonic Testing

Technical information

Software type: Operating, inspection and evaluation software
Compatible system: BARPROOF phased-array ultrasonic inspection system
Operating system: Windows (multilanguage)
User management: Password-protected user management with configurable access rights
Recipe management: Inspection recipes, material data and inspection parameters
Phased-array configuration: Configuration of aperture, focal depth, beam angle and step size
Calibration: Automatic balancing of virtual phased-array probes using reference reflectors or backwall echoes
Inspection visualization: Live A-Scan, B-Scan, line chart and defect table display
Result evaluation: Defect analysis including type, position, length and amplitude
Documentation: Automatic inspection reports (PDF) with storage of inspection results and raw data
Interfaces: Communication with phased-array electronics, PLC and Level 2 systems

Related products

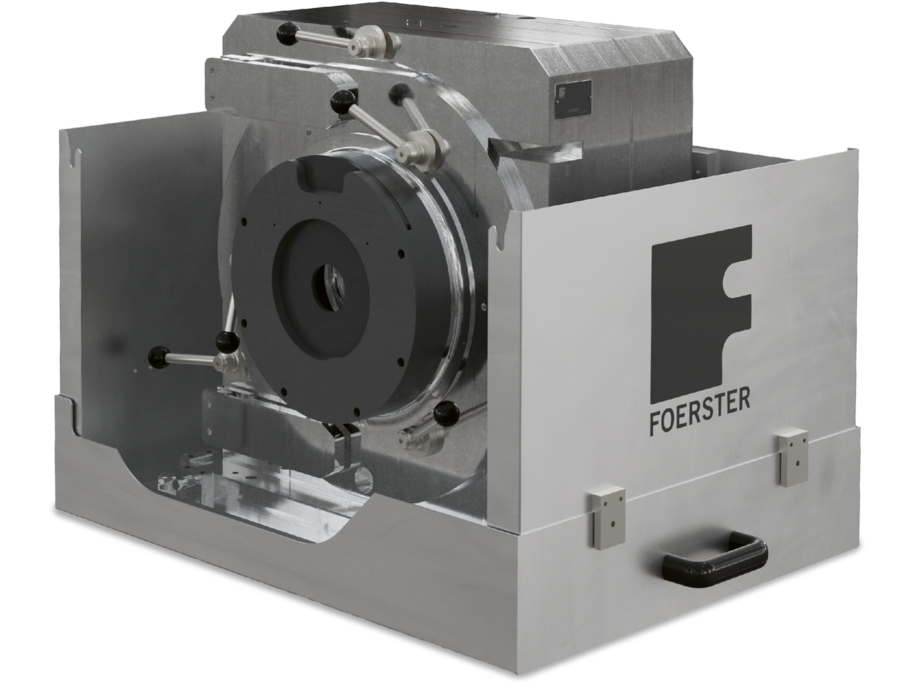

FOERSTER BARPROOF
