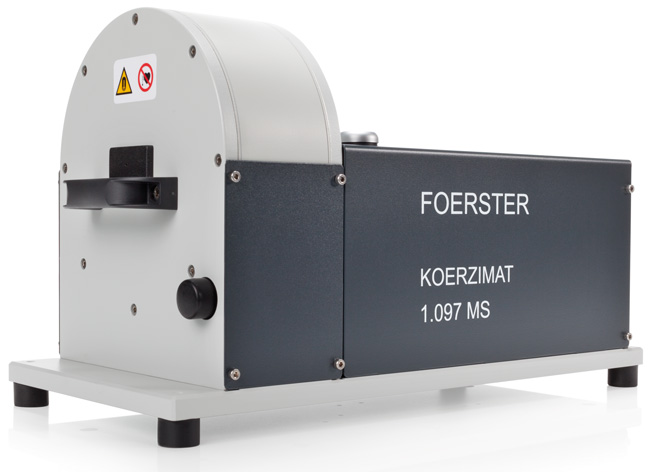

KOERZIMAT 1.097 MS

Systems for measuring the saturation polarization σs and Js

Reliably determine saturation polarization. The KOERZIMAT 1.097 MS is a measuring system for the fast and precise determination of mass-specific saturation polarization σs and volume-specific saturation polarization Js. Measurement is performed according to IEC 60404-14 using the pull-off method in an open magnetic circuit and is largely independent of sample geometry. This allows even complex-shaped samples to be tested without requiring a predefined geometry.

The measuring system uses a powerful permanent magnet in a Halbach arrangement to saturate the sample. As the sample is withdrawn from the homogeneous magnetic field, its magnetic dipole moment is measured using a pair of Helmholtz coils and a fluxmeter. The sample mass is additionally taken into account to calculate σs, while the sample volume or density is required to determine Js.

Typical applications include quality control of hard metals according to ASTM B886, monitoring the degree of sintering and carbon balance, and determining the amount of tungsten dissolved in cobalt as well as the free iron, cobalt or nickel content in powders and hard metals. The system is also suitable for characterizing soft magnetic components, investigating new alloys and determining magnetic phases in steel alloys.

With the MS 26 × 60 for particularly small samples and the MS 31 × 69 for larger sample masses, two system variants are available for different testing requirements.

Product highlights

Your advantages at a glance

  • Precise saturation measurement: Determination of magnetic properties in accordance with IEC 60404-14
  • Versatile material analysis: Determination of σs, Js, magnetic dipole moment, magnetic material content and magnetic phase
  • Largely geometry-independent: Measurement of complex-shaped samples without requiring a predefined sample geometry
  • High sensitivity: MS 26 × 60 for particularly small samples and low magnetic material content
  • Large sample space: MS 31 × 69 for sample masses up to approx. 200 g
  • Consistent measuring conditions: Strong, homogeneous magnetic field generated by compact Halbach magnet systems
  • Automatic compensation: Compensation for the magnetic influence of the sample holder
  • Traceable calibration: Calibration traceable to national standards (PTB)

Norms

  • ASTM B886
    Describes the method for determining the saturation magnetism of sintered hard metals.
  • EN IEC 60404-14
    Describes the determination of the magnetic saturation dipole moment jS using moment coils in open magnetic circuits. The method described above is advantageous as it provides the option to perform measurements regardless of the geometry of the sample. It is not required to manufacture special measuring samples.

Applications

Magneto-inductive test method

Magneto-inductive test method

Magnetic measurements

Magnetic measurements

Technical information

Measured quantities: j, σs, Js, magnetic material content MA, W, magnetic phase MP
Test method: Pull-off method according to IEC 60404-14
Max. sample mass:
  • approx. 50 g (MS 26 × 60)
  • approx. 200 g (MS 31 × 69)
Sample space (W × L × H):
  • 30 × 40 × 18 mm (MS 26 × 60)
  • 41 × 58.5 × 23 mm (MS 31 × 69)
Magnetic flux density:
  • ≥ 1.00 T (MS 26 × 60)
  • ≥ 1.05 T (MS 31 × 69)
Homogeneous field range:
  • Ø 26 × 16 mm (MS 26 × 60)
  • Ø 32 × 21 mm (MS 31 × 69)
Sensitivity:
  • 2 × 10⁻¹¹ Vsm ≈ 0.1 mg Co (MS 26 × 60)
  • 1 × 10⁻¹⁰ Vsm ≈ 0.5 mg Co (MS 31 × 69)
Measurement uncertainty: < 0.5% of measured value (calibration with Ni standard)
Linearity: ±0.1% of full-scale value
Measurement time:
  • 3 s (MS 26 × 60)
  • approx. 10 s (MS 31 × 69), excluding mass determination
Measuring element: Helmholtz coil pair with fluxmeter
Sample holder:
  • manual (MS 26 × 60)
  • pneumatic (MS 31 × 69)
Interface: LAN 100 Mbit; additional I/O port for MS 31 × 69
System dimensions (W × H × L):
  • approx. 172 × 217 × 230 mm (MS 26 × 60)
  • approx. 265 × 280 × 460 mm (MS 31 × 69)
Weight:
  • approx. 13.9 kg (MS 26 × 60)
  • approx. 29 kg (MS 31 × 69)
Degree of protection: IP53
Ambient temperature: +5 to +45 °C
Power supply: 100 – 240 V, 50/60 Hz
Compressed air supply: 6 bar (MS 31 × 69 only)
