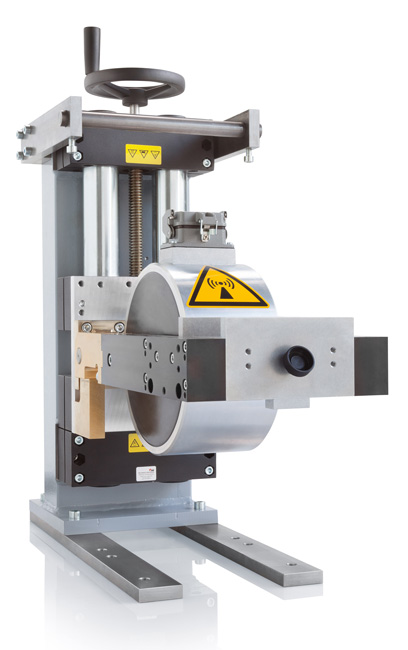

Sensor systems for precision testing of the weld seam area

The S sensor systems are used for the non-destructive eddy current testing of the weld seam areas of metallic tubes with LMD segment coils. Various S sensor systems with and without dc-field magnetization are available for solving different test tasks.

Your advantages at a glance

  • Testing of non-ferromagnetic and ferromagnetic materials
  • Testing of materials with low ferrite content
  • Testing of round tubes with concave LMD segment coils and square tubes with flat LMD segment coils
  • Testing of material diameters from 10 mm to 180 mm
  • Used directly in production lines, such as after the tube welder
  • Testing at all welding speeds

Technical Data

Materials that can be tested: non-ferromagnetic, austenitic, and low ferrite content
Test material diameter: 10 - 180 mm
Ambient temperature: 0 - 45 °C
