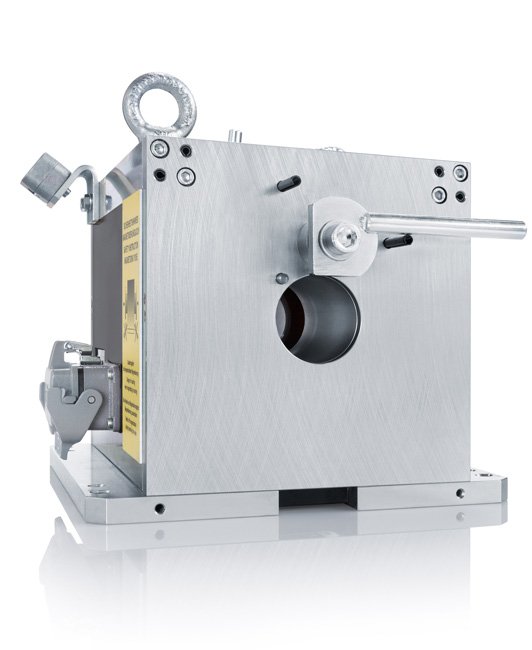

Sensor system for testing ferromagnetic semi-finished products

The M sensor system was developed for the non-destructive testing for defects in ferromagnetic and austenitic semi-finished products requiring magnetization. The main area of application is the continuous testing of tubes, rods, and wire with round or profiled cross-section combined with DEFECTOMAT® test and evaluation equipment. The M sensor systems cover material diameters from around 1 mm to 240 mm.

Your advantages at a glance

  • Optional additional testing of austenitic and non-ferromagnetic metals
  • Test material diameter from 1 - 240 mm
  • Test coil and protective nozzle sizes increase in small increments for optimum test results
  • For testing with through-type coils and DEFECTOARRAY sensors
  • Iron enclosure detection combined with FERROMAT channel with DEFECTOMAT DA, DEFECTOMAT DI/CI

Technical Data

Test material diameter: 1 mm - 240 mm
Defect types by defect detectability DIN EN ISO 15549: Transverse and point defects
Suitable for FOERSTER analysis devices: DEFECTOMAT® DA, DEFECTOMAT CI / DI, DEFECTOMAT ECM
Suitable for FOERSTER coils: Through-type coils, segment coils, and DEFECTOARRAY
