Precision testing of round and profiled non-ferromagnetic material

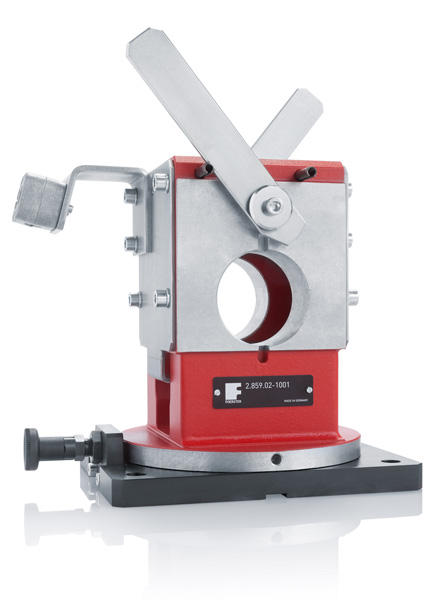

The H sensor systems are used for the non-destructive defect testing of non-ferromagnetic semi-finished products. Combined with the DEFECTOMAT test instruments, rods and wires, including those with profiled cross-section, are tested in one continuous run in accordance with the eddy current method specified in DIN 54 140. The H sensor systems cover material diameters from 1 mm to 100 mm.

Your advantages at a glance

  • Testing of non-ferromagnetic metals
  • Test material diameter from 1 - 100 mm
  • Test coil and protective nozzle sizes increase in small increments for optimum test results
  • For testing with through-type coils and DEFECTOARRAY sensor system

Technical Data

Test material diameter: 1 mm - 100 mm
Defect types by defect detectability DIN EN ISO 15549: Transverse and point defects
Suitable for FOERSTER analysis devices: DEFECTOMAT DA, DEFECTOMAT CI / DI, DEFECTOMAT ECM
Suitable for FOERSTER coils: Through-type coils and DEFECTOARRAY
