Eddy current testing of weld seams

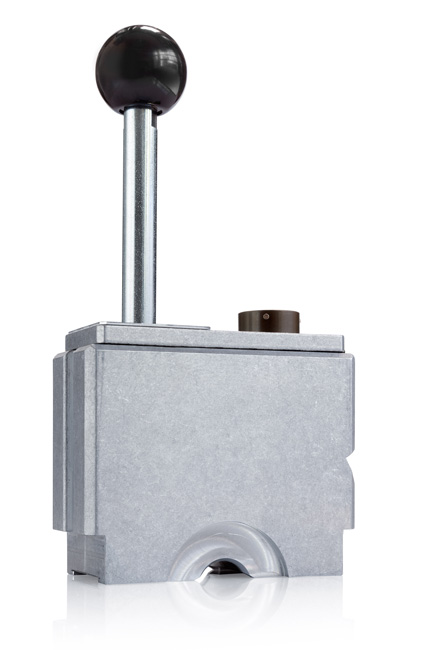

Molded segment coils from 10 mm to 180 mm were developed for the eddy current testing of weld seams. Flat segment coils are available for larger tube diameters of up to 500 mm. The LSM segment coil yoke is used for ferromagnetic tubes. The magnetization strength can be adjusted to suit the test task. The LSP segment coil yoke can also be used if lower magnetization strength is sufficient.

Your advantages at a glance

  • Testing of austenitic, non-ferrite and ferrite metals
  • Coils can be operated with the sensor systems LSP, LSM, or S.
  • Suitable for weld seam testing
  • The accompanying S sensor systems are fitted with a robust spindle system for height adjustment and adaptation to the testing line

Technical Data

Test material diameter: 10 mm - 180 mm or flat
For dimensions larger than 180 mm: special versions are available
