Structured quality assurance made simple

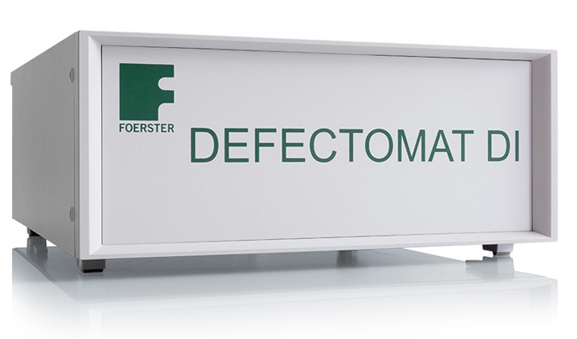

The DEFECTOMAT DI has the same comprehensive features as the DEFECTOMAT CI less integrated operation unit. An external computer connected via Ethernet performs all operation, administration, and archiving. tasks. The module's deceptively plain design hides a multitude of functions that make it easy to use the system electronics in almost any production environment.

Your advantages at a glance

  • Optional full 2-channel analysis, Diff/Abs, Diff/Diff, Diff/Ferromat
  • 12 excitation frequencies from 1 to 1,000 kHz
  • Filter tracking according to test speed
  • Precision marking in exact location
  • Sector signal analysis with 2 trigger levels
  • State-of-the-art computer technology
  • Full network integration
  • Remote-controlled settings

Technical Data

Measurement channels: Max. 2 independent channels, differential or static operation, second measurement channels optionally as FERROMAT
Excitation frequencies: 1, 3, 6, 10, 12, 15 20, 30, 60, 100, 300, 1,000 kHz (optional additional frequencies)
Filtering process: manual, 25 levels, 1 Hz - 16 kHz
Amplification: max. dynamic range 102 dB
Test speed: max. 150 m/s
Sensor monitoring: disruption, short circuit, overload

Norms

DIN EN ISO 15549

Describes the general bases of eddy current testing.
